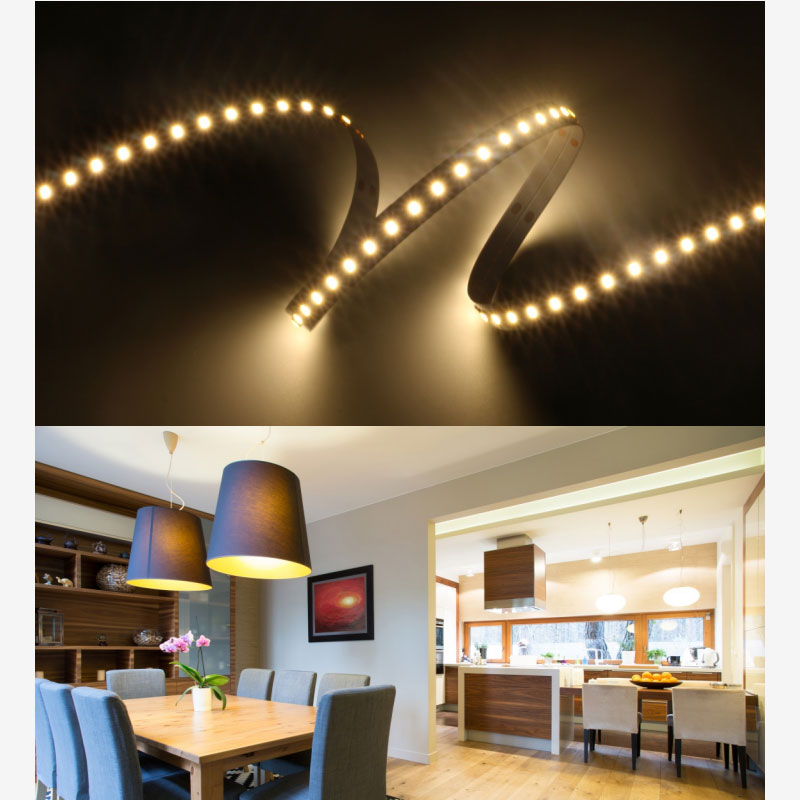

Commercial-Grade LED Strips

Brightness

@4000K&CRI90&IP20

Light Efficacy

LED Qty

Increment

Part No.

Voltage

Power

Dimension @IP20

670lm/M

(200lm/ft.)

140lm/W

70LED/M

(21LED/ft.)

100mm

(3.94in)

EP-24-FD35

(EP-X2835XX-24-CV-070-FD35)

24VDC

4.8W/M

(1.5W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

1130lm/M

(340lm/ft.)

133lm/W

70LED/M

(21LED/ft.)

100mm

(3.94in)

EP-24-FD35

(EP-X2835XX-24-CV-070-FD35)

24VDC

8.5W/M

(2.6W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

1680lm/M

(510lm/ft.)

140lm/W

126LED/M

(38LED/ft.)

55.6mm

(2.19in)

EP-24-FE38

(EP-X2835XX-24-CV-126-FE38)

24VDC

12W/M

(3.7W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

2260lm/M

(690lm/ft.)

133lm/W

140LED/M

(42LED/ft.)

50mm

(1.97in)

EP-24-FD36

(EP-X2835XX-24-CV-140-FD36)

24VDC

17W/M

(5.2W/ft.)

L5000*W10*H1mm

(L197*W0.39*H0.04in)

2790lm/M

(850lm/ft.)

133lm/W

168LED/M

(51LED/ft.)

41.7mm

(1.64in)

EP-24-FE39

(EP-X2835XX-24-CV-168-FE39)

24VDC

21W/M

(6.4W/ft.)

L3000*W10*H1mm

(L118*W0.39*H0.04in)

3220lm/M

(980lm/ft.)

Two-Rows

140lm/W

280LED/M

(85LED/ft.)

50mm

(1.97in)

EP-24-FE40

(EP-X2835XX-24-CV-280-FE40)

24VDC

23W/M

(7W/ft.)

L5000*W20*H1mm

(L197*W0.79*H0.04in)

4120lm/M

(1260lm/ft.)

Two-Rows

133lm/W

280LED/M

(85LED/ft.)

50mm

(1.97in)

EP-24-FE40

(EP-X2835XX-24-CV-280-FE40)

24VDC

31W/M

(9.5W/ft.)

L5000*W20*H1mm

(L197*W0.79*H0.04in)

3990lm/M

(1220lm/ft.)

Three-Rows

133lm/W

420LED/M

(128LED/ft.)

50mm

(1.97in)

EP-24-LC48

(EP-X2835XX-24-CV-420-LC48

24VDC

30W/M

(9.1W/ft.)

L5000*W25*H1mm

(L197*W0.98*H0.04in)
