High-Efficacy LED Strip
Jingzhao Lighting is a China factory and supplier of High-Efficacy LED Stripfacing the world. With its excellent team, complete facilities and professional production workshops, it is well received by customers at home and abroad.
Send Inquiry
Product Description

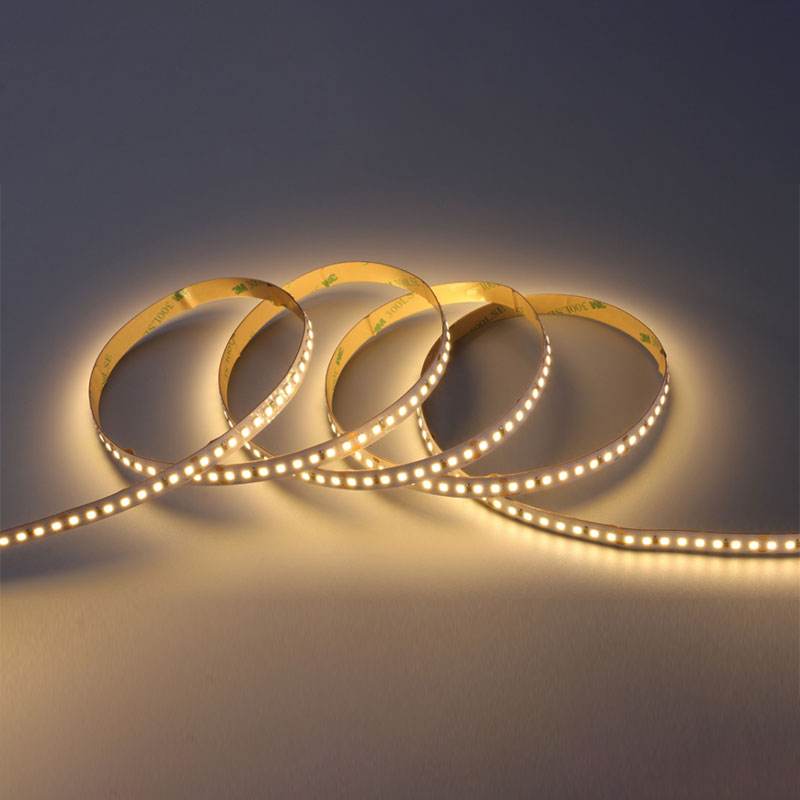

High-Efficacy LED Strips from Jingzhao Lighting factory provide excellent lighting effects and energy-saving advantages. Adopting high-performance LED, ensuring bright and uniform light with long life. Suitable for a variety of scenarios, including home, commercial and industrial use. The flexible design makes it easy to install and adapt to various curved surfaces and space requirements.
FEATURE
• Premium ErP version with high energy efficiency class, which can replace the non- ErP or low-efficacy ErP version with classical power and LED density.
• 50,000h long lifespan.
2835 LED White CRI90
|
Brightness @4000K&CRI80&IP20 |
Light Efficacy |
LED Qty |
Increment |
Part No. |
Voltage |
Power |
Dimension @IP20 |
|
580lm/M ( 180lm/ft.) |
120lm/W |
70LED/M (21LED/ft.) |
100mm (3.94in) |
EP-24-FD35 (EP-X2835XX-24-CV-070-FD35) |
24VDC |
4.8W/M (1.5W/ft.) |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
|
1160lm/M (350lm/ft.) |
120lm/W |
140LED/M (42LED/ft.) |
50mm (1.97in) |
EP-24-FD36 (EP-X2835XX-24-CV-140-FD36) |
24VDC |
9.6W/M (2.93W/ft.) |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
|
1730lm/M (530lm/ft.) |
120lm/W |
140LED/M (42LED/ft.) |
50mm (1.97in) |
EP-24-FD36 (EP-X2835XX-24-CV-140-FD36) |
24VDC |
14.4W/M (4.39W/ft.) |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
|
670lm/M (200lm/ft.) |
140lm/W |
80LED/M (24LED/ft.) |
100mm (3.94in) |
EP-24-LD39 (EP-X2835XX-24-CV-080-LD39) |
24VDC |
4.8W/M (1.5W/ft.) |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
|
1340lm/M (410lm/ft.) |
140lm/W |
160LED/M (48LED/ft.) |
50mm (1.97in) |
EP-24-L642 (EP-X2835XX-24-CV-160-L642) |
24VDC |
9.6W/M (2.93W/ft.) |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
|
2020lm/M (620lm/ft.) |
140lm/W |
240LED/M (73LED/ft.) |
33.3mm (1.31in) |
EP-24-L643 (EP-X2835XX-24-CV-240-L643) |
24VDC |
14.4W/M (4.39W/ft.) |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
|
730lm/M (220lm/ft.) |
153lm/W |
80LED/M (24LED/ft.) |
100mm (3.94in) |
EP-24-LD39 (EP-X2835XX-24-CV-080-LD39) |
24VDC |
4.8W/M (1.5W/ft.) |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
|
1470lm/M (450lm/ft.) |
153lm/W |
160LED/M (48LED/ft.) |
50mm (1.97in) |
EP-24-L642 (EP-X2835XX-24-CV-160-L642) |
24VDC |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
9.6W/M (2.93W/ft.) |
|
2200lm/M (670lm/ft.) |
153lm/W |
240LED/M (73LED/ft.) |
33.3mm (1.31in) |
EP-24-L643 (EP-X2835XX-24-CV-240-L643) |
24VDC |
L5000*W10*H1 mm (L197*W0.39*H0.04in) |
14.4W/M (4.39W/ft.) |
Transport of Goods
Zhongshan as an important city in the Pearl River Delta region, the logistics routes are four and five, basically all over every corner of the country, if you do not have a designated logistics company, we will choose the appropriate special line to deliver to you according to your delivery address, reduce your logistics costs.
